The perfect sound for every taste

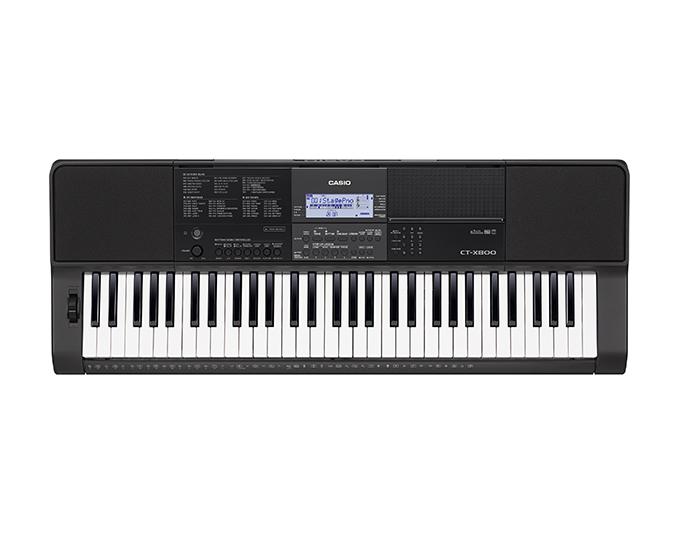

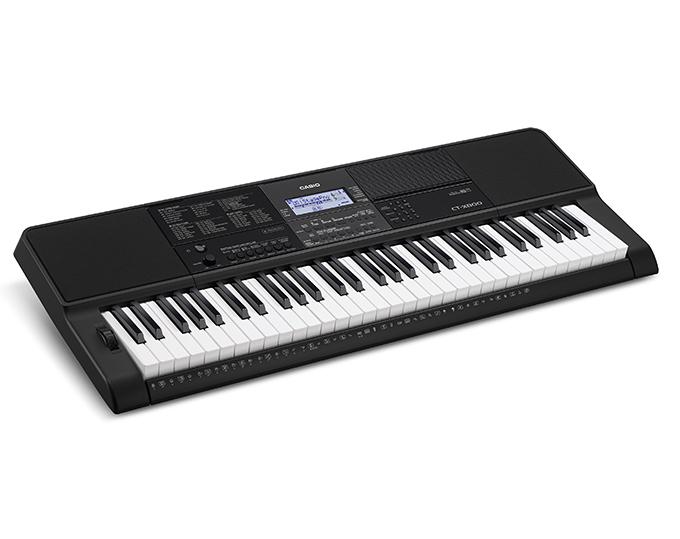

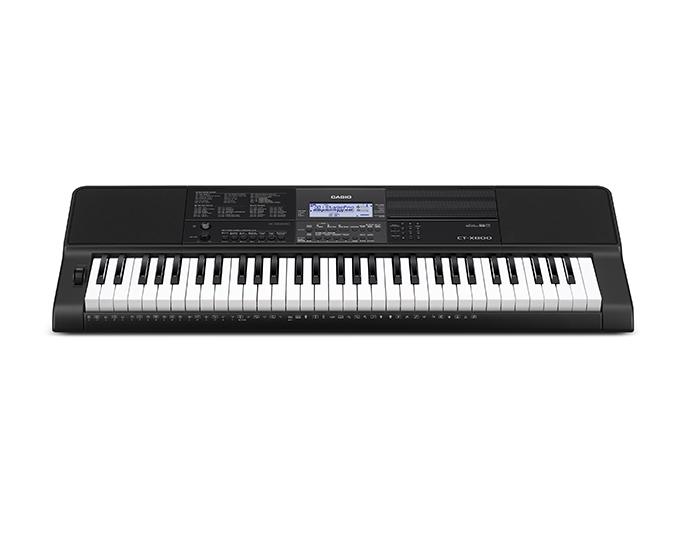

The new CT-X800 keyboard impresses not only with its modern design and improved functionality, but above all with brand new AIX Sound Source. This feature reproduces the characteristic sound of acoustic instruments — making it exceptionally powerful. One particular highlight is the natural sound of acoustic instruments like pianos, string and wind instruments and drums. Equipped with a USB-to-device port, a pitch bend wheel, a synchro stop rhythm controller, tap tempo function and registration freeze button, the CT-X800 is the perfect keyboard for beginners and advanced players. Producing dancefloor hits with funky beats is just as easy as jamming with the realistic sounds of acoustic instruments.&
Features – 61 touch responsive piano-style keys& – New powerful AiX Sound Source& – New contemporary content within the 600 tones and 195 rhythms& – Registration freeze function& – 310 Music Presets, 195 One Touch Presets& – Tap tempo button& – Pitch bend wheel& – USB to Host, USB to Device, Audio In, pedal jack
Technical Specifications
Keyboard
61 keys
Maximum polyphony
48 notes (24 for certain tones)
Touch response
3 types, off
Tones
Sound Source: AiX
Built-in tones: 600
Functions:& Layer, Split, Piano/Organ button
Digital effects
Reverb: 20 types, off
Chorus: 10 types, tone
Metronome
Beats per measure: 0 to 9
Tempo range:& 20 to 255
Song bank
Demo song: 1
Built-in songs: 160
User songs: 10 (maximum capacity per song: approximately 320 kilobytes)
User-recorded songs: 6 (maximum capacity per song: approximately 320 kilobytes)
Step up lesson
Lessons: 3 (Listen, watch, remember), Easy Mode
Lesson part: L, R, LR
Functions: Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation
Auto accompaniment
Built-in rhythms: 195
User rhythms: 10 (maximum capacity per song: approximately 64 kilobytes)
Music presets
310
One touch presets
195
Registration
32 (4 setups x 8 banks)
MIDI recorder
Real-time recording, playback
Keyboard play: 5 songs, 6 tracks
Playing along with built-in-songs: 1 song (L, R, LR)
Memory capacity:approximately 40.000 notes (1 song)
Controllers
Pitch bend wheel
Other functions
Transpose:& ±1 octave (-12 to 0 to + 12 semitones)
Octave shift:& Upper 1/ Upper 2/ Lower, ± 3 octaves
Tuning:& A4 = 415,5 to 465,9 Hz (initial default: 440,0 Hz)
Preset scales:& 17 preset scales
Auto harmonize:& 12 types
Arpeggiator:& 100 types
MIDI
16-multi-timbre received, GM Level 1 standard
Musical information function
Tone, Rhythm, Song bank numbers and names, Staff Notation, Fingering, Pedal operation, Tempo, Measure and Beat-number, chord name etc.

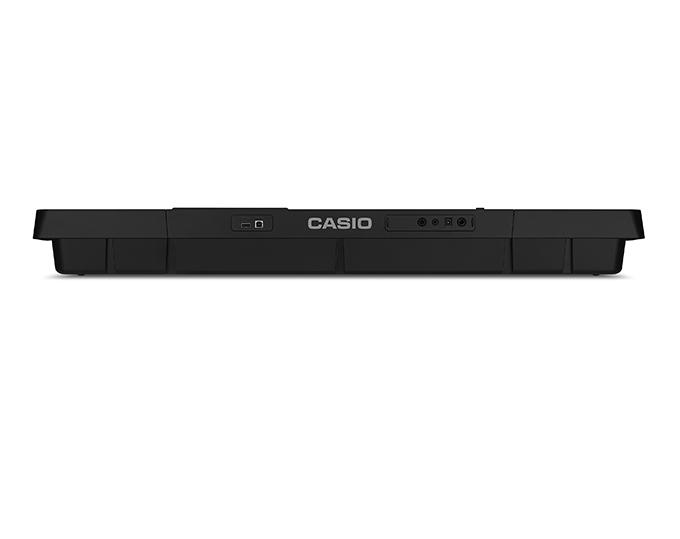

Inputs/Outputs
USB flash drive port:& Type A
USB port:& Type B
Pedal jack 1: Standard jack (sustain, sostenuto, soft, rhythm)
Phones/Output jack:& Stereo standard jack (Output impedance: 167 Ω, output voltage: 4,5 V (RMS) MAX)
Audio input jack:& Stereo mini jack (Input impedance: 10 kΩ, input sensitivity: 200 mV)
Power jack
DC 9,5 V
Power supply
2-way
Batteries
6 x AA-size alkaline batteries
Battery life
approximately 3 hours continuous operation on alkaline batteries
AC adaptor
AD-E95100L
Auto power off
approximately 30 minutes after last operation; can be disabled
Speakers
12 cm x 2 (output: 2,5 W + 2,5 W)
Power consumption
9,5 V – 7,5 W
Dimensions
94,8 x 35,0 x 10,9 cm
Weight
approximately 4,4 kg (without batteries)
